WPX1 Brushless motor


Geared motor Specification

Scroll Table

Geared motor model CM CD NEW!
Configuration Brushless motor & 1:64 Gear head Brushless motor & 1:42 Gear head
Operation Voltage *1 DC16V to DC24V DC16V to DC24V
Current *2 Less than 400mA Less than 600mA
Pump Rev. Approx. 47 to 70rpm at DC16 to 24V(100mNm Load) Approx. 78 to 117rpm at DC16 to 24V(100mNm Load)
Rotatory direction CW
Motor operating temperature

less than 70℃

This motor is equipped with an IC inside its casing.
When the drive IC reaches a predefined temperature,
the motor power is shuts down automatically.
There is no guarantee that a power motor having been shutdown due to
temperature will be reusable.

Motor lock protection

2sec TYP
If the motor locks up, the motor power will be shut down within a predefined time.
The motor will restart upon power-up.

Life 5,000hr (Geared motor) *Not a guaranteed value.

*1.The lowest operation voltage may vary depending on the tube type, tube size, ambient temperature, etc.
Please contact your sales representative to get help when you operate by lower voltage.

*2.The consumption current described above is the value during normal operations.
An approximately threefold inrush current occurs during rotation startup.

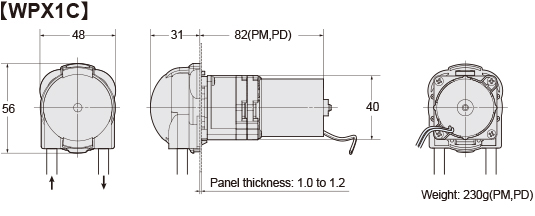

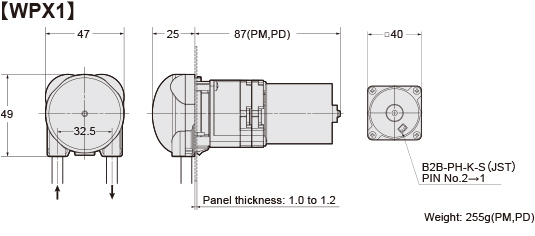

Dimensions (unit: mm)

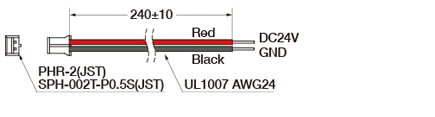

Motor wiring terminal dimensions diagrams


Circuit protection
This motor is not equipped with a circuit for protection against overvoltage and connection to terminals at the incorrect
polarity. Be careful not to apply surge voltages that exceed the rated voltage and not to connect to the incorrect polarity.
