WP1000/1100 High Performance DC Brush Motor & Gear
Geared motor Specification
Scroll Table
| Geared motor model | IG | ID | IF | JG | JD | JF |
|---|---|---|---|---|---|---|
| Rated voltage | DC24V | DC12V | ||||
| RPM (load: 100mNm) | 18rpm (24V input) |
150rpm (24V input) |
225rpm (24V input) |
18rpm (12V input) |
140rpm (12V input) |
225rpm (12V input) |
| Operation voltage | 8V to 24V | 6V to 12V | ||||
| Current | Less than 200mA |
Less than 350mA |
Less than 450mA |
Less than 300mA |
Less than 650mA |
Less than 810mA |
24VDC Brush Motor & Gear
IG
ID
IF
voltage 8V to 24V
Consumption current 200mA max
voltage 8V to 24V
Consumption current 350mA max
voltage 8V to 24V
Consumption current 450mA max
12VDC Brush Motor & Gear
JG
JD
JF
voltage 6V to 12V
Consumption current 300mA max
voltage 6V to 12V
Consumption current 650mA max
voltage 6V to 12V
Consumption current 810mA max
1. The specified current consumption reflects normal operating conditions. Upon startup, an inrush current approximately three times greater than the normal value may be generated.
2. The minimum operating voltage may vary depending on tube size, material, operating environment, and other factors. Please verify performance under actual operating conditions.
3. A short circuit between terminals may occur due to motor end-of-life or between commutator slits under certain operating environments and conditions.To prevent circuit burnout or damage to the system, please implement appropriate protective measures, such as using fuses or other circuit protection devices.
Flow amount benchmark (flow amount per rotation)
Scroll Table
| Inner diameter | 1.6mm (1/16”) |
2.4mm (3/32”) |
3.2mm (1/8”) |
4mm (-) |
4.8mm (3/16”) |
6.4mm (1/4”) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of rollers | 2 | 4 | 2 | 4 | 2 | 4 | 2 | 4 | 2 | 4 | 2 | - |
| Flow amount per rotation (ml) | - | 0.2 | 0.5 | 0.45 | 0.9 | 0.8 | 1.45 | 1.2 | 1.95 | 1.6 | 3.0 | - |
Caution : The above table describes the initial benchmark flow amounts during water suction. This may vary considerably depending on the tube type, use period, ambient temperature, and lot tolerances, etc. Measure the specifications with reasonable leeway.

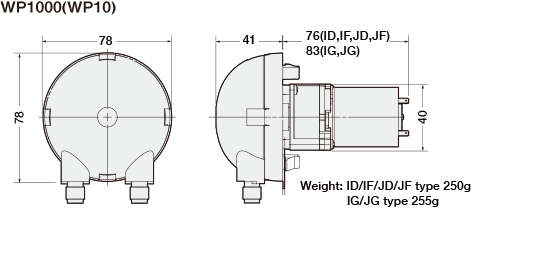

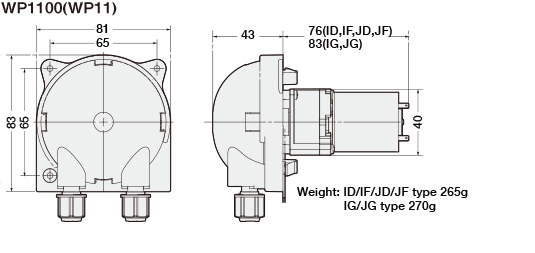

Dimensions (unit: mm)
Motor wiring diagrams
